Evaluating the performance of parallel computing systems is crucial for understanding their efficiency and identifying potential bottlenecks. Here are key metrics and concepts for evaluating performance:

Performance Metrics

I. Throughput

• The number of tasks or operations completed per unit of time.
• Higher throughput indicates better performance.
• Calculated as:

$$ \text{Throughput} = \frac{\text{number of tasks}}{\text{time}} $$

II. Latency

• The time taken to complete a single task or operation.
• Lower latency is preferable for performance-sensitive applications.
• Calculated as:

$$ \text{Latency} = \frac{\text{time}}{\text{single task}} $$

III. Speedup

• The ratio of the time taken to complete a task using a single processor to the time taken using multiple processors.
• Calculated as:

$$ \text{Speedup} = \frac{T_1}{T_p} $$

where $T_1$ is the time with one processor, and $T_p$ is the time with $p$ processors.

IV. Efficiency

• The ratio of speedup to the number of processors used.
• Calculated as:

$$ \text{Efficiency} = \frac{\text{Speedup}}{p} $$

V. Scalability

• The ability of a system to maintain or improve performance as the number of processors or the load increases.
• Measured by analyzing how performance metrics change with varying numbers of processors.

Weak Scaling:

• Variable number of processors with a fixed problem size per processor.
• Accomplish more work in the same time.

Strong Scaling:

• Variable number of processors with a fixed total problem size.
• Accomplish same work in less time.

VI. Load Balancing

• The distribution of workloads evenly across processors to avoid some processors being idle while others are overloaded.
• Evaluated by comparing the workloads on each processor.

VII. Overhead

• The extra time or resources required to manage parallel tasks, such as communication between processors and synchronization.
• Lower overhead indicates better efficiency.

VIII. Resource Utilization

• The extent to which the computing resources (CPU, memory, I/O) are being used.
• Higher resource utilization can indicate better performance but may also signal potential bottlenecks.

Amdahl's Law

Amdahl's Law, formulated by Gene Amdahl in 1967, is used to find the maximum improvement in processing speed that can be expected from a system when only part of the system is improved. It is particularly useful in parallel computing to understand the potential gains from using multiple processors.

The law is mathematically expressed as:

$$S(n) = \frac{1}{(1 - P) + \frac{P}{n}}$$

Where:

• $S(n)$ is the speedup of the system using $n$ processors.
• $P$ is the proportion of the program that can be parallelized.
• $1 - P$ is the proportion of the program that cannot be parallelized.

Key Points:

1. The sequential portion $(1 - P)$ refers to the part of the task that remains serial and cannot be improved by adding more processors.
2. The parallel portion $(P)$ is the part of the task that can be divided among multiple processors.
3. Diminishing returns occur as the number of processors increases, making the impact of the sequential portion more significant and limiting the overall speedup.
4. Scalability of a system is limited by the non-parallelizable portion of the workload.

Practical Implications:

• Optimizing parallelism involves maximizing the parallelizable portion of the task to achieve significant speedup.
• Amdahl’s Law is crucial in system design, helping to predict and enhance the performance of parallel systems by minimizing the sequential portion of tasks.
• It aids in cost-benefit analysis, helping to understand the trade-offs between the cost of adding more processors and the expected performance improvement.

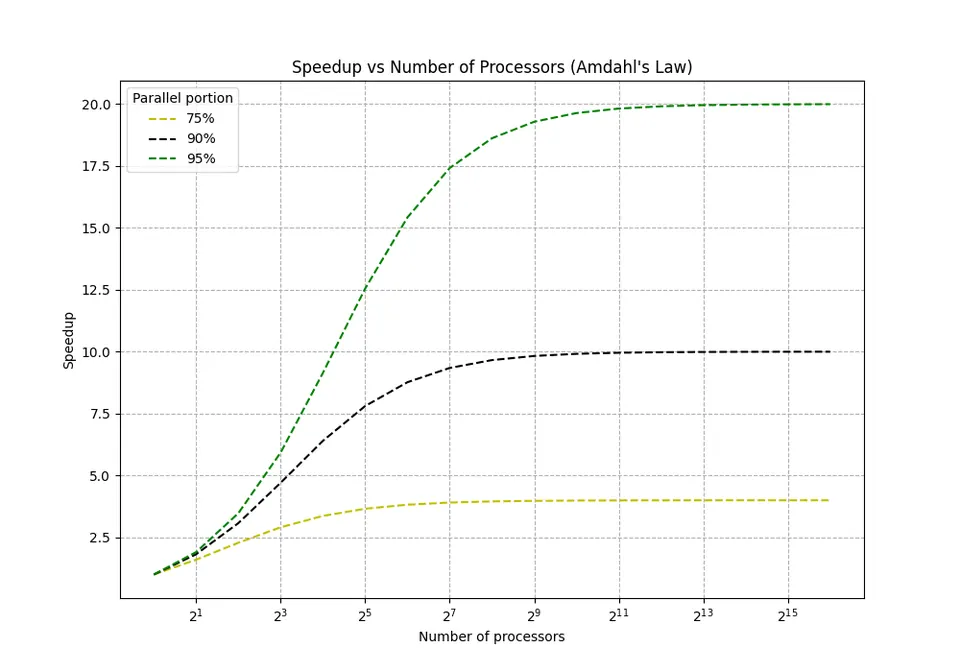

Visual Representation of Amdahl's Law

The graph illustrates the relationship between speedup (y-axis) and the number of processors (x-axis) for varying values of the parallelizable portion $P$. As the value of $P$ increases, the speedup improves, but eventually reaches a plateau, highlighting the diminishing returns when additional processors are added. This visual representation underscores the impact of the sequential portion of a task on the overall performance improvement.

Performance Measurement Techniques

I. Profiling

• Profiling in parallel computing involves collecting data about a program's execution, aiming to identify performance bottlenecks, hotspots, and inefficiencies.
• Understanding where a program spends most of its time is crucial in profiling, as it highlights parts of the code that are heavily utilized and potential areas for parallelization.
• Identifying hotspots is essential, as these sections of code consume the most computational resources, indicating where optimization efforts should be focused.
• Locating inefficiencies helps in recognizing areas where the program does not perform optimally, such as sections with high latency or unnecessary computations.
• Measuring performance metrics is a key aspect of profiling, involving the collection of data on execution time, memory usage, CPU usage, and other relevant parameters.
• Profiling provides insights that guide optimization efforts, helping developers to enhance code, improve parallelism, and boost overall performance.

Tools for Profiling in Parallel Computing:

Steps in Profiling Parallel Programs:

• Modifying the code or using tools to insert probes that collect performance data during execution is known as instrumentation in profiling.
• Running the instrumented program to generate profiling data requires ensuring that workloads and input sets are realistic and representative.
• Data collection involves gathering information on execution time, memory usage, CPU usage, and other relevant metrics during the program's execution.
• Analyzing the collected data with profiling tools helps in identifying hotspots and understanding performance bottlenecks within the program.
• Optimization involves refactoring code based on profiling insights to enhance performance, improve parallelism, and eliminate inefficiencies.
• Validation is the process of re-profiling the optimized program to ensure that improvements are realized and performance gains are validated.

II. Monitoring

• Monitoring in parallel computing involves continuously observing the state and performance of a system to ensure it operates correctly and efficiently.
• It helps detect and diagnose issues in real-time, ensuring system reliability, performance, and availability, which is essential for maintaining optimal operation in parallel computing environments.
• Real-time observation means continuously tracking the performance and status of the system to stay informed about its current state.
• Detecting anomalies involves identifying unusual behavior or performance issues that could indicate underlying problems.
• Monitoring resource utilization includes keeping an eye on the usage of computational resources such as CPU, memory, disk I/O, and network.
• Ensuring system health means verifying that the system is running smoothly and detecting any hardware or software failures promptly.
• Analyzing performance trends over the long term helps anticipate future issues or needs, allowing for proactive management of the system.

Tools for Monitoring in Parallel Computing

Steps in Monitoring Parallel Systems:

• Setting up the monitoring infrastructure involves installing and configuring monitoring tools and agents.
• Identifying and defining key metrics to be monitored is a crucial step in setting up an effective monitoring system.
• Continuously collecting data on system performance and resource utilization ensures that the monitoring system stays up-to-date.
• Setting up rules for alerting and notifications helps in promptly addressing anomalies or issues as they arise.
• Using dashboards and reports for analysis and visualization allows for an in-depth understanding of the monitoring data.
• Regularly updating and maintaining the monitoring setup is necessary to adapt to changes in the system and ensure ongoing effectiveness.
