Central Difference Method

The central difference method is a finite difference method used for approximating derivatives. It utilizes the forward difference, backward difference, and the principles of Taylor series expansion to derive a more accurate approximation of derivatives. This method is particularly valuable in numerical analysis and computational applications where analytical derivatives are difficult or impossible to obtain. By considering points on both sides of the target point, the central difference method balances the approximation, leading to improved accuracy compared to one-sided methods.

Mathematical Formulation and Derivation

The central difference approximation of the first derivative of a function $f$ at a point $x$ with step size $h$ is given by:

$$f^{\prime }\left(x\right)\approx \frac{f(x+h)-f(x-h)}{2h}$$

This formula is derived from the average of the forward and backward difference formulas. The forward difference approximation is expressed as:

$$f^{\prime }\left(x_0\right)\approx \frac{f(x_0+h)-f\left(x_0\right)}{h},h>0$$

Similarly, the backward difference approximation is:

$$f^{\prime }\left(x_0\right)\approx \frac{f\left(x_0\right)-f(x_0-h)}{h},h>0$$

By taking the average of these two approximations, we eliminate the leading error terms, resulting in a more accurate estimate of the derivative. The Taylor series expansion is a representation of a function as an infinite sum of terms calculated from the function's derivatives at a single point. We use this expansion to improve our approximation of derivatives:

Expanding $f(x_0+h)$ and $f(x_0-h)$ in a Taylor series around $x_0$:

$$f(x_0+h)=f\left(x_0\right)+h{f}^{\prime }\left(x_0\right)+\frac{h^2}{2}{f}^{\prime \prime }\left(x_0\right)+O\left(h^3\right)$$

$$f(x_0-h)=f\left(x_0\right)-h{f}^{\prime }\left(x_0\right)+\frac{h^2}{2}{f}^{\prime \prime }\left(x_0\right)+O\left(h^3\right)$$

Subtracting the second equation from the first and rearranging for $f^{\prime }\left(x_0\right)$:

$$f^{\prime }\left(x_0\right)=\frac{f(x_0+h)-f(x_0-h)}{2h}+O\left(h^2\right)$$

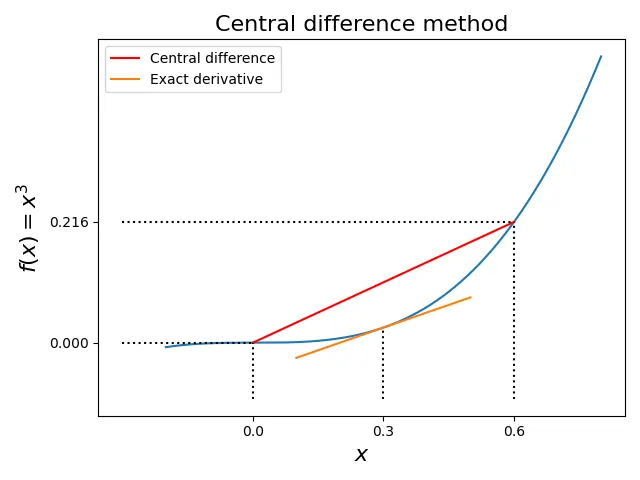

This formula represents the slope of the secant line passing through the points $(x-h,f(x-h\left)\right)$ and $(x+h,f(x+h\left)\right)$. The use of both forward and backward points allows the central difference method to achieve a higher order of accuracy by effectively canceling out lower-order error terms.

Error in Central Difference Method

The error in the central difference method is of the order $O\left(h^2\right)$, which implies that the error decreases quadratically as the step size $h$ approaches zero. This quadratic rate of convergence makes the central difference method significantly more accurate than the forward or backward difference methods, which typically have an error of order $O\left(h\right)$. However, while reducing $h$ can enhance accuracy, it must be balanced against potential numerical instability and the limitations of floating-point arithmetic. Extremely small values of $h$ can lead to round-off errors, thereby limiting the practical accuracy achievable with this method.

Example

Suppose we have a function $f\left(x\right)=x^2$, and we want to approximate the derivative at the point $x=2$ with a step size $h=0.01$. Using the central difference method, we get:

$$f^{\prime }\left(2\right)\approx \frac{f(2+0.01)-f(2-0.01)}{2\times 0.01}=\frac{4.0401-3.9601}{0.02}=4.00$$

The exact derivative of $f\left(x\right)=x^2$ at the point $x=2$ is $f^{\prime }\left(2\right)=2\times 2=4$, so the approximation is accurate. This example demonstrates how the central difference method can effectively approximate derivatives with high precision, especially for smooth functions. It also highlights the method's reliance on the choice of step size $h$, which must be sufficiently small to capture the function's behavior without introducing significant numerical errors.

Advantages

• The method offers higher accuracy compared to forward or backward difference methods by utilizing function values on both sides of the point, which reduces the error term in derivative approximations.
• Simplicity in implementation makes it easy to apply, with straightforward formulas that are accessible for use in numerical analysis and computational tasks.
• The central difference method is applicable to discrete data, allowing for its use when analytical evaluations are difficult or impossible, such as in cases of data fitting, signal processing, and numerical simulations.

Limitations

• There is always an approximation error, even though it is smaller than other difference methods. Decreasing the step size $h$ reduces the error, but excessively small $h$ can lead to numerical instability due to floating-point limitations.
• The method’s requirement for function values on both sides of the point means it cannot be applied directly at the domain boundaries unless the function is defined beyond those boundaries. This restricts its use in finite datasets or boundary value problems without extrapolation or assumptions.
